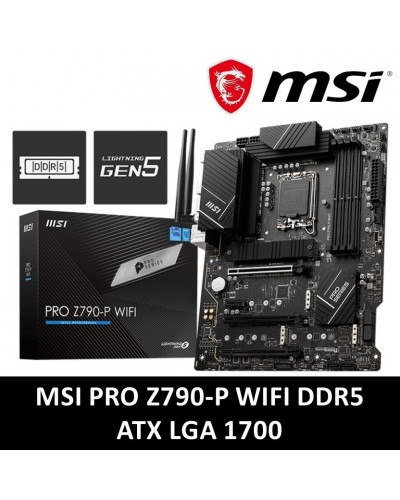

დედა დაფა MSI PRO Z790-P WIFI 911-7E06-022 DDR5

Chipset  :   INTEL Z790

CPU SUPPORT:  Supports 12th/13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors

     LGA 1700

Memory  :   4x DDR5, Maximum Memory Capacity 128GB

         Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz

       Max. overclocking frequency:

       1DPC 1R Max speed up to 7000+ MHz

       1DPC 2R Max speed up to 6600+ MHz

        2DPC 1R Max speed up to 6400+ MHz

        2DPC 2R Max speed up to 5600+ MHz

        Supports Intel® XMP3.0 OC

        Supports Dual-Controller Dual-Channel mode

        Supports non-ECC, un-buffered memory

Onboard Graphics  :  1x HDMI

          1x DisplayPort

          Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*

          Support DP 1.4, maximum resolution of 4K 60Hz*

       *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT  :   3x PCI-E x16 slot

         1x PCI-E x1 slot

         PCI_E1 PCIe 5.0 supports up to x16 (From CPU)

         PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

         PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

         PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)

Storage  :    4x M.2 slot

         M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

         M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

         M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

         M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

         6x SATA 6G port

RAID  :   Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

          Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB  :   4x USB 2.0 (Rear)

          4x USB 2.0 (Front)

          2x USB 3.2 Gen1 Type A (Rear)

          4x USB 3.2 Gen1 Type A (Front)

           1x USB 3.2 Gen2 Type A (Rear)

           1x USB 3.2 Gen2 Type C (Front)

           1x USB 3.2 Gen2x2 Type C (Rear)

LAN   :  Intel® 2.5Gbps LAN

WIRELESS / BLUETOOTH  :   Intel® Wi-Fi 6E

          The Wireless module is pre-installed in the M.2 (Key-E) slot

          Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

          Supports 802.11 a/ b/ g/ n/ ac/ ax

          Supports Bluetooth® 5.3, FIPS, FISMA

           * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 10 build 21H1 and Windows 11.

Audio  :   Realtek® ALC897 Codec

        7.1-Channel High Definition Audio

Internal I/O   :  1x Power Connector(ATX_PWR)

        2x Power Connector(CPU_PWR)

        1x CPU Fan

        1x Pump Fan

        6x System Fan

        2x Front Panel (JFP)

        1x Chassis Intrusion (JCI)

       1x Front Audio (JAUD)

       1x TBT connector (JTBT, supports RTD3)

       1x Tuning Controller connector(JDASH)

       2x Addressable V2 RGB LED connector (JARGB_V2)

       1x RGB LED connector(JRGB)

       1x TPM pin header(Support TPM 2.0)

       4x USB 2.0

       4x USB 3.2 Gen1 Type A

       1x USB 3.2 Gen2 Type C

LED FEATURE  :   4x EZ Debug LED

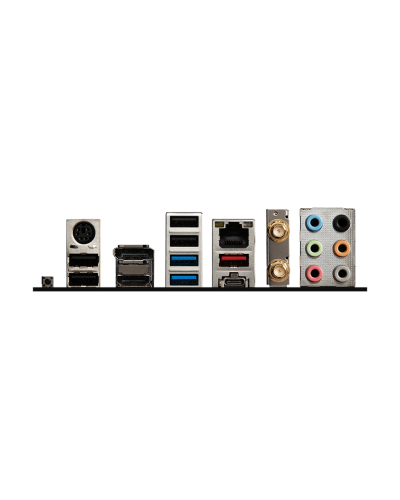

BACK PANEL PORTS

       Keyboard / Mouse

       DisplayPort

       USB 2.0

       2.5G LAN

       Wi-Fi / Bluetooth

       Audio Connectors

       Flash BIOS Button

       USB 2.0

       HDMI

       USB 3.2 Gen 1 5Gbps (Type-A)

       USB 3.2 Gen 2x2 20Gbps (Type-C)

       USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM  :   Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension  :   ATX

          243.84mmx304.8mm
